Surge Protection for E-Mobility

EV infrastructure and lightning surges

As the Electrical Vehicles (EV) are now used in many countries and will become the major share of the automative market in the next future, their reliability and those of the charging infrastructure are now a big issue to consider. The availability and safety of the EVs and their related charging stations have been recognized as one of the key elements.

The vast majority of charging stations are connected to the electrical power grid and the risk of surge voltages, coming from lightning events or switching operations, flowing through must be absolutely considered.

Moreover, other types of transient voltages most be considered. As the switchnig surges (coming from switching operation on AC network) and ESD (electrostatic discharge).

The conditions in charging situation change, as the vehicle electronics are now connected to the power grid, and transient voltages will be coupled into the vehicle via this galvanic connection and will come a major threat.

The different charging modes

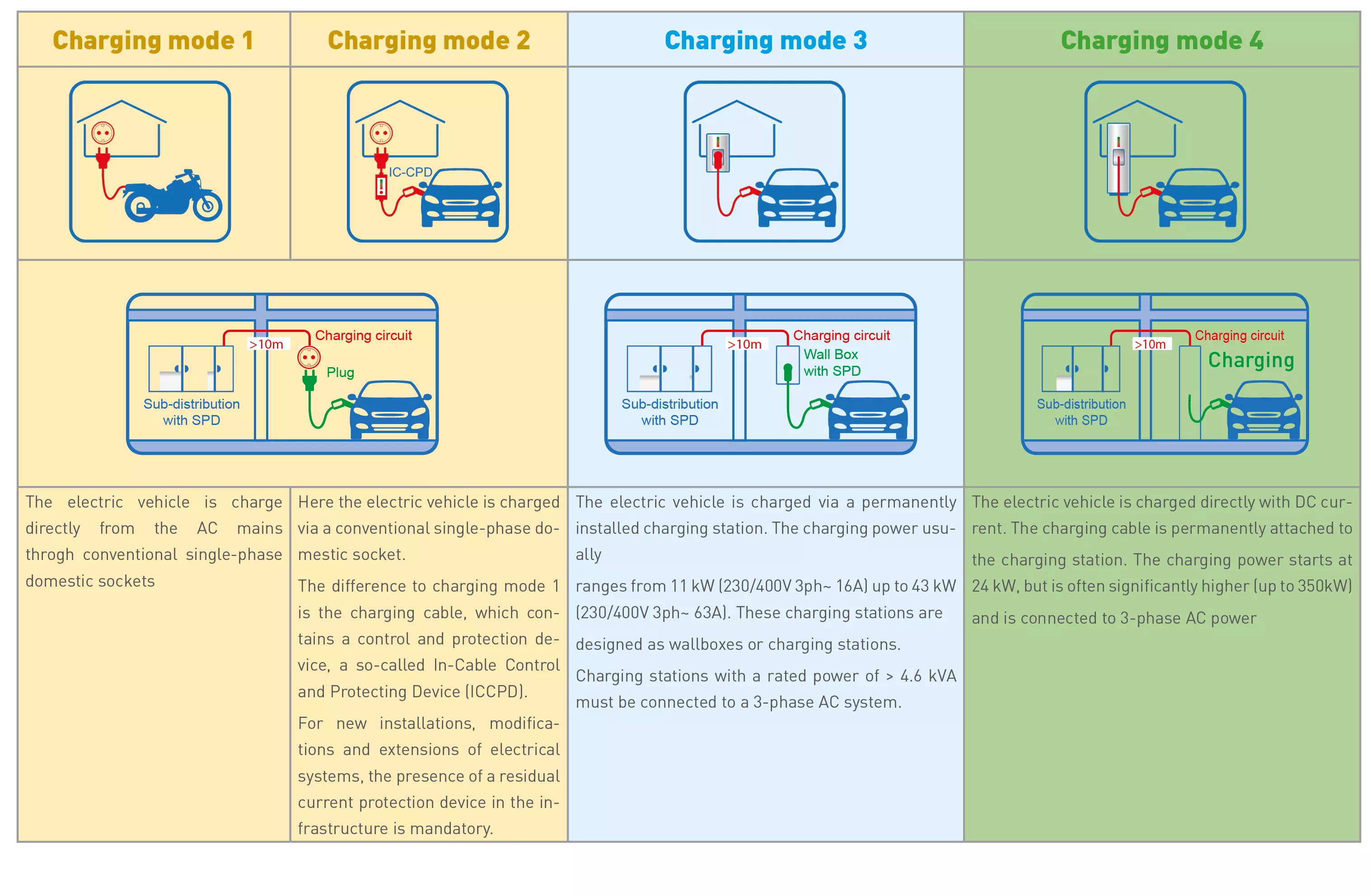

Normatively, a distinction is made between 4 different charging modes, which are based on the IEC 61851-1 standard. These different charging modes describe various types of installation, depending on these modes the surge protection solution may change.

charging modes

SPD selection

application_e-mobility

SPD for main electrical panel

LocationCitel modelSPD type
Main panel / street cabinetDAC1-13VGS-31-275Type 1+2+3 - Pluggable - DIN rail dac1-13vgs-31
Domestic main panelDAC50VGS-31-275Type 2 + 3 - Pluggable - DIN rail DAC50VGS-31

SPD for Charging Terminal

LocationCitel modelSPD type
Wall box - DIN railDAC15CS-31-275Type 2 (or 3) - Compact - Pluggable - DIN rail DAC15CS-31-275
Wall box - Printed circuit board mountingPAC40S-10-275
PAC40GS-10-275
Type 2 for PCB mounting - 230 Vac single-phase or 3-phase+N PAC40S-10-275
PAC40GS-10-275
Street lighting charging pointDACN10S-21YG-275Type 2+3 - Monobloc - Compact - DIN rail DACN10S-21YG
Street lighting charging pointDACN10-L21YG-275Type 2 (or 3) - Monobloc - Compact - DIN rail DACN10-L21YG
