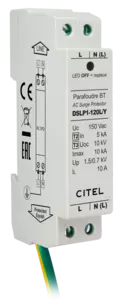

Surge protector for LED lighting system Class 1
DSLP1-120L/Y
Part Number 352922
- Type 2 (or 3) surge protectors for LED
- Very compact (low profile)
- DIN rail mounting
- Screw terminal connection
- Status indicator
- Disconnection AC end of life
- EN 61643-11, IEC 61643-11 compliance
Datasheet
DSLP range is an AC series surge protectors for DIN mountage create to protect LED systems.
The surge protectors DSLP are verry compact to be integrated in the luminaires and are available in 2 connection modes (terminal screw or spring).
Select another reference:
|
SPD type
|
IEC | 2 (or 3) |
|
Isolation classe
|
I | |
|
Network
|
120 V single-phase or 2-phase | |
|
AC system
|
TN | |
|
Nominal line voltage
|
Un | 120 Vac |
|
Max. AC operating voltage
|
Uc | 150 Vac |
|
Max. load current @25°C
|
IL | 10 A |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 120 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 230 Vac disconnection |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 5 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 10 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 10 kV / 5 kA |
|
Withstand on overvoltages IEEE C62.41.1
|
10 kV / 10 kA | |
|
Protection mode(s)
|
Common/Differential mode | |
|
Protection level L/N
@ In (8/20µs)
|
Up L/N | 1.5 kV |
|
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.5 kV |
|
Admissible short-circuit current
|
Isccr | 10 000 A |
|
Technology
|
MOV+GDT | |
|
Connection to Network
|
Screw terminal 2.5 mm² max. Earthing conductor 2 mm² - length 60 cm | |
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
|
Housing material
|
Thermoplastic UL94 V-0 | |
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 | |
|
Failsafe mode
|
Disconnection from AC network | |
|
Disconnection indicator
|
LED green OFF and AC network cut-off | |
|
Operating indicator
|
Green Led ON | |
|
Dimensions
|
See diagram | |
|
Weight
|
0.062 kg |
|
Standards compliance
|
EN 61643-11 / IEC 61643-11 |
|
Thermal disconnector
|
Internal | |
|
Installation ground fault breaker
|
Type 'S' or delayed |
