Type 2 AC surge protector - Single-phase

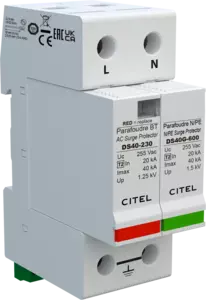

DS42S-230/G
Part Number 461531
- Discover our latest innovation : the DAC50S-11-275
- Type 2 AC Multipolar surge protector
- In: 20 kA
- Imax total: 40 kA
- Pluggable module for each phase
- Remote signaling
- EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Datasheet
used mainly for primary protection of single and 4- phase networks at the main electrical panel.
They provide common-mode or common and differential mode.
This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards.
The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
|
SPD type
|
IEC | 2 |
|
Network
|
230 V single-phase | |
|
AC system
|
TT-TN | |
|
Nominal line voltage
|
Un | 230 Vac |
|
Max. AC operating voltage
|
Uc | 255 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac disconnection |
|
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
|
UT | 1200 V/300A/200 ms withstand |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Operating current
Continious current at Uc
|
Ic | 0.5 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 40 kA |
|
Connection mode(s)
|
L/N and N/PE | |
|
Protection mode(s)
|
Common/Differential mode | |
|
Residual voltage at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.9 kV |
|
Protection level L/N
@ In (8/20µs)
|
Up L/N | 1.25 kV |
|
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.5 kV |
|
Residual voltage at 10 kA
@ 8/20µs
|
Up-10kA | 1.1 kV |
|
Admissible short-circuit current
|
Isccr | 25 000 A |
|
Technology
|
MOV+GDT | |
|
SPD configuration
|
Single phase | |
|
Connection to Network
|
By screw terminals: 2.5-25mm² / by bus | |
|
Format
|
Plug-in modular box | |
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
|
Housing material
|
Thermoplastic UL94 V-0 | |
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 | |
|
Failsafe mode
|
Disconnection from AC network | |
|
Disconnection indicator
|
1 mechanical indicator by pole | |
|
Spare module(s)
|
DSM40-230+DSM40G-600 | |
|
Remote signaling of disconnection
|
Output on changeover contact | |
|
Dimensions
|
See diagram | |
|
Weight
|
0.178 kg |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
|
Certification
|
CSA / UL Listed |
|
Thermal disconnector
|
Internal | |
|
Installation ground fault breaker
|
Type 'S' or delayed | |
|
Back-up protection device
|
Fuses type gG - 50 A |
